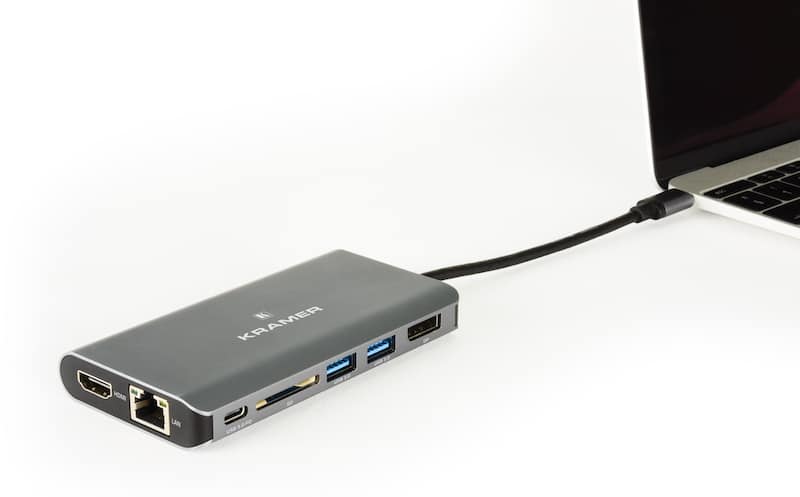

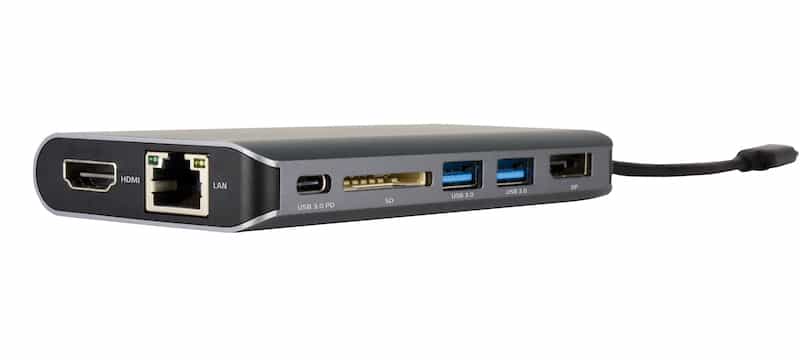

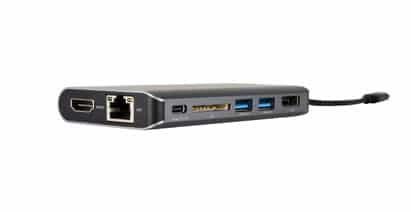

KDock-3 is een USB-C hub multiport adapter speciaal ontworpen om mobiele apparaten te ondersteunen en is een ideaal accessoire voor MacBook, laptops uitgerust met USB Type-C, mobiele telefoons en tablets. Met KDock-3 kunt u uw USB-C-apparaat aansluiten op HDMI- en DisplayPort-video-uitgangen, 2 USB 3.0-poorten, een Ethernet-poort, SD-kaartpoort en USB-C-gegevens- en oplaaddoorvoer.

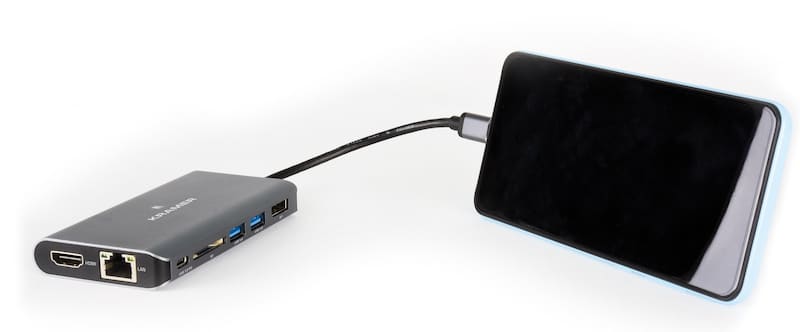

Opmerking: video-uitgang voor smartphones wordt alleen ondersteund voor smartphones die de DisplayPort Alt-modus via USB-C ondersteunen
INGANGEN
1 USB: On a USB Type–C male connector
UITGANGEN
1 HDMI: On a female HDMI connector
1 DisplayPort: On a female DisplayPort connector
POORTEN
2 USB 3.0/2.0: On female USB type–A connectors
1 Ethernet: On an RJ–45 connector
1 USB 3.0: On a female USB type–C connector for data and charging
SD: On an SD card port
VIDEO
Max Resolution: 3840x2160P@30Hz (with one display connected)
Max Resolution: 1920x1080P@60Hz (with two displays connected)
Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel)
Multiple Video Output Support: Via MST (Multi–Stream Transport) technology
Content Protection (HDMI output): HDCP 1.4
EXTENDED ETHERNET
Max Data Rate: 1000M (Gigabit)/100M/10M
Includes: Wake–on–LAN (WoL), single Mac address, PXE boot
ALGEMEEN
USB 3.0 Data Transmission Speed (USB 3.0 & USB-C): Up to 5.0Gbps
VOEDING
Delivery: 100W
USB Charging: BC1.2 (5V 1.5A)
USB Limited Current when Connected to Power via female USB-C port: 1.9A
USB Limited Current when Not Connected to Power via female USB-C port: 1A
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0° to +70°C (32° to 158°F)
Storage Temperature: –10° to +55°C (14° to 131°F)
Humidity: 5% to 90%, RHL non–condensing
ENCLOSURE
Type: Aluminum with built–in 16cm/6.3″ flexible USB–C cable
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE
Environmental: RoHs, FCC
FORMAAT
11.65cm x 6.08cm x 1.60cm (4.59″ x 2.39″ x 0.63″ ) W, D, H
GEWICHT
0.1kg (0.3lbs) approx.
VERZENDAFMETINGEN
15.60cm x 10.20cm x 3.50cm (6.14″ x 4.02″ x 1.38″ ) W, D, H
SHIPPING WEIGHT
0.2kg (0.4lbs) approx.
